| Rated Power | 0.55 kW – 400 kW |
| Rated Voltage | 380 V |
| Rated Frequency | 50 Hz |
| Cooling Method | IC411 (External Surface Cooling) |
| Connection Mode | Y Connection for ≤ 3 kW; △ Connection for > 3 kW |
| Ambient Temperature | -15°C – +40°C |
| Altitude | ≤ 1000 m above sea level |

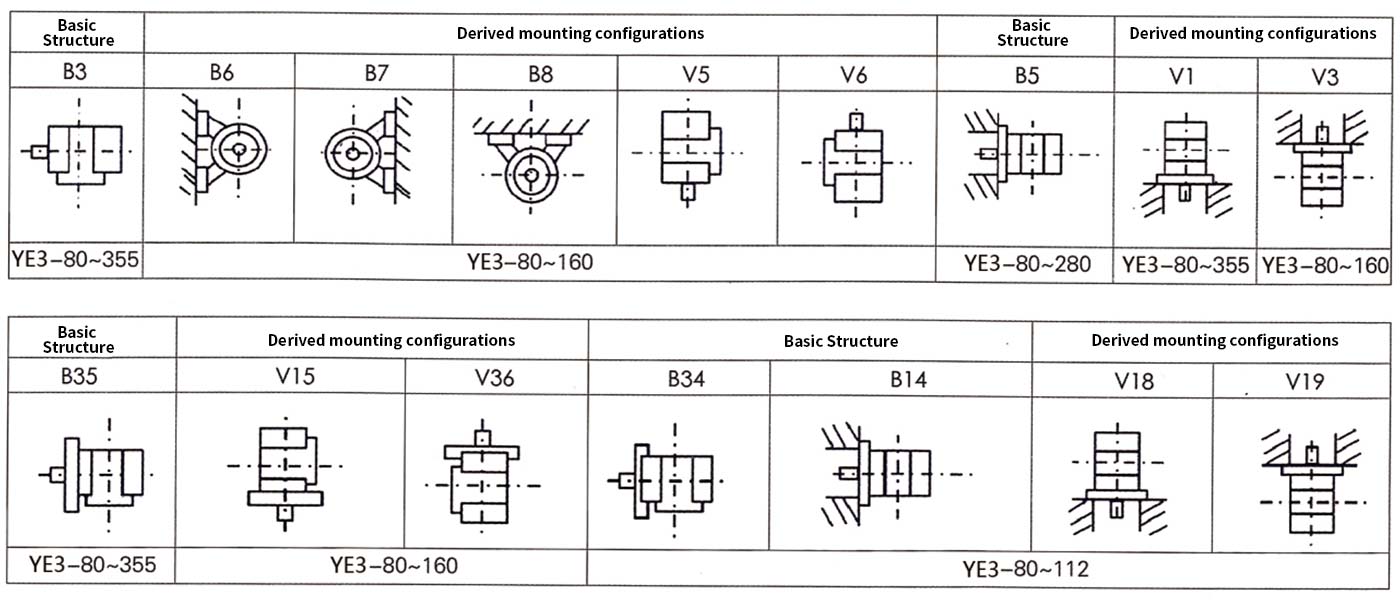

Motor mounting dimensions comply with IEC34-7 international standards, supporting standard & derivative mounting types:
| Model | Power(kW) | Voltage(V) | Wiring method | Protection rating | Weight(kg) | Power factor | Rotational speed (r/min) | efficiency | Current(A) | Frequency(Hz) |
| YE3-80M1-2 | 0.75 | 380 | Y | IP55 | 18 | 0.82 | 2874 | 80.7 | 1.7 | 50 |
| YE3-80M2-2 | 1.1 | 380 | Y | IP55 | 20 | 0.83 | 2882 | 82.7 | 2.43 | 50 |
| YE3-80M2-4 | 0.75 | 380 | Y | IP55 | 24 | 0.75 | 1460 | 82.5 | 1.84 | 50 |
| YE3-90S-2 | 1.5 | 380 | Y | IP55 | 24 | 0.84 | 2898 | 84.2 | 3.22 | 50 |
| YE3-90L-2 | 2.2 | 380 | Y | IP55 | 29 | 0.85 | 2895 | 85.9 | 4.58 | 50 |
| YE3-90S-4 | 1.1 | 380 | Y | IP55 | 25 | 0.76 | 1437 | 84.1 | 2.61 | 50 |
| YE3-90L-4 | 1.5 | 380 | Y | IP55 | 31 | 0.77 | 1438 | 85.3 | 3.47 | 50 |
| YE3-90S-6 | 0.75 | 380 | Y | IP55 | 24 | 0.71 | 950 | 78.9 | 2.03 | 50 |
| YE3-90L-6 | 1.1 | 380 | Y | IP55 | 29 | 0.73 | 950 | 81 | 2.83 | 50 |
| YE3-100L-2 | 3 | 380 | Y | IP55 | 39 | 0.87 | 2890 | 87.1 | 6.02 | 50 |
| YE3-100L1-4 | 2.2 | 380 | Y | IP55 | 40 | 0.81 | 1450 | 86.7 | 4.76 | 50 |
| YE3-100L2-4 | 3 | 380 | Y | IP55 | 45 | 0.82 | 1450 | 87.7 | 6.34 | 50 |
| YE3-100L-6 | 1.5 | 380 | Y | IP55 | 37 | 0.73 | 955 | 82.5 | 3.78 | 50 |
| YE3-112M-2 | 4 | 380 | Δ | IP55 | 48 | 0.88 | 2890 | 88.1 | 7.83 | 50 |
| YE3-112M-4 | 4 | 380 | Δ | IP55 | 58 | 0.82 | 1430 | 88.6 | 8.36 | 50 |
| YE3-112M-6 | 2.2 | 380 | Y | IP55 | 48 | 0.74 | 940 | 84.3 | 5.35 | 50 |
| YE3-132S1-2 | 5.5 | 380 | Δ | IP55 | 62 | 0.88 | 2929 | 89.2 | 10.65 | 50 |
| YE3-132S2-2 | 7.5 | 380 | Δ | IP55 | 74 | 0.88 | 2921 | 90.1 | 14.37 | 50 |
| YE3-132S-4 | 5.5 | 380 | Δ | IP55 | 74 | 0.83 | 1463 | 89.6 | 11.24 | 50 |
| YE3-132M-4 | 7.5 | 380 | Δ | IP55 | 85 | 0.84 | 1463 | 90.4 | 15.01 | 50 |
| YE3-132S-6 | 3 | 380 | Y | IP55 | 67 | 0.74 | 970 | 85.6 | 7.2 | 50 |
| YE3-132M1-6 | 4 | 380 | Δ | IP55 | 73 | 0.74 | 960 | 86.8 | 9.46 | 50 |
| YE3-132M2-6 | 5.5 | 380 | Δ | IP55 | 85 | 0.75 | 960 | 88 | 12.7 | 50 |
| YE3-160M1-2 | 11 | 380 | Δ | IP55 | 130 | 0.89 | 2950 | 91.2 | 20.59 | 50 |
| YE3-160M2-2 | 15 | 380 | Δ | IP55 | 140 | 0.89 | 2950 | 91.9 | 27.86 | 50 |
| YE3-160L-2 | 18.5 | 380 | Δ | IP55 | 154 | 0.89 | 2950 | 92.4 | 34.18 | 50 |
| YE3-160M-4 | 11 | 380 | Δ | IP55 | 135 | 0.85 | 1470 | 91.4 | 21.51 | 50 |
| YE3-160L-4 | 15 | 380 | Δ | IP55 | 176 | 0.86 | 1470 | 92.1 | 28.77 | 50 |
| YE3-160M-6 | 7.5 | 380 | Δ | IP55 | 128 | 0.79 | 975 | 89.1 | 16.19 | 50 |
| YE3-160L-6 | 11 | 380 | Δ | IP55 | 150 | 0.8 | 975 | 90.3 | 23.14 | 50 |
| YE3-180M-2 | 22 | 380 | Δ | IP55 | 187 | 0.89 | 2950 | 92.7 | 40.51 | 50 |
| YE3-180M-4 | 18.5 | 380 | Δ | IP55 | 180 | 0.86 | 1470 | 92.6 | 35.29 | 50 |
| YE3-180L-4 | 22 | 380 | Δ | IP55 | 252 | 0.86 | 1470 | 93 | 41.79 | 50 |
| YE3-180L-6 | 15 | 380 | Δ | IP55 | 180 | 0.81 | 980 | 91.2 | 30.85 | 50 |
| YE3-200L1-2 | 30 | 380 | Δ | IP55 | 250 | 0.89 | 2950 | 93.3 | 54.89 | 50 |
| YE3-200L2-2 | 37 | 380 | Δ | IP55 | 280 | 0.89 | 2950 | 93.7 | 67.41 | 50 |
